SKU: AN1153-B

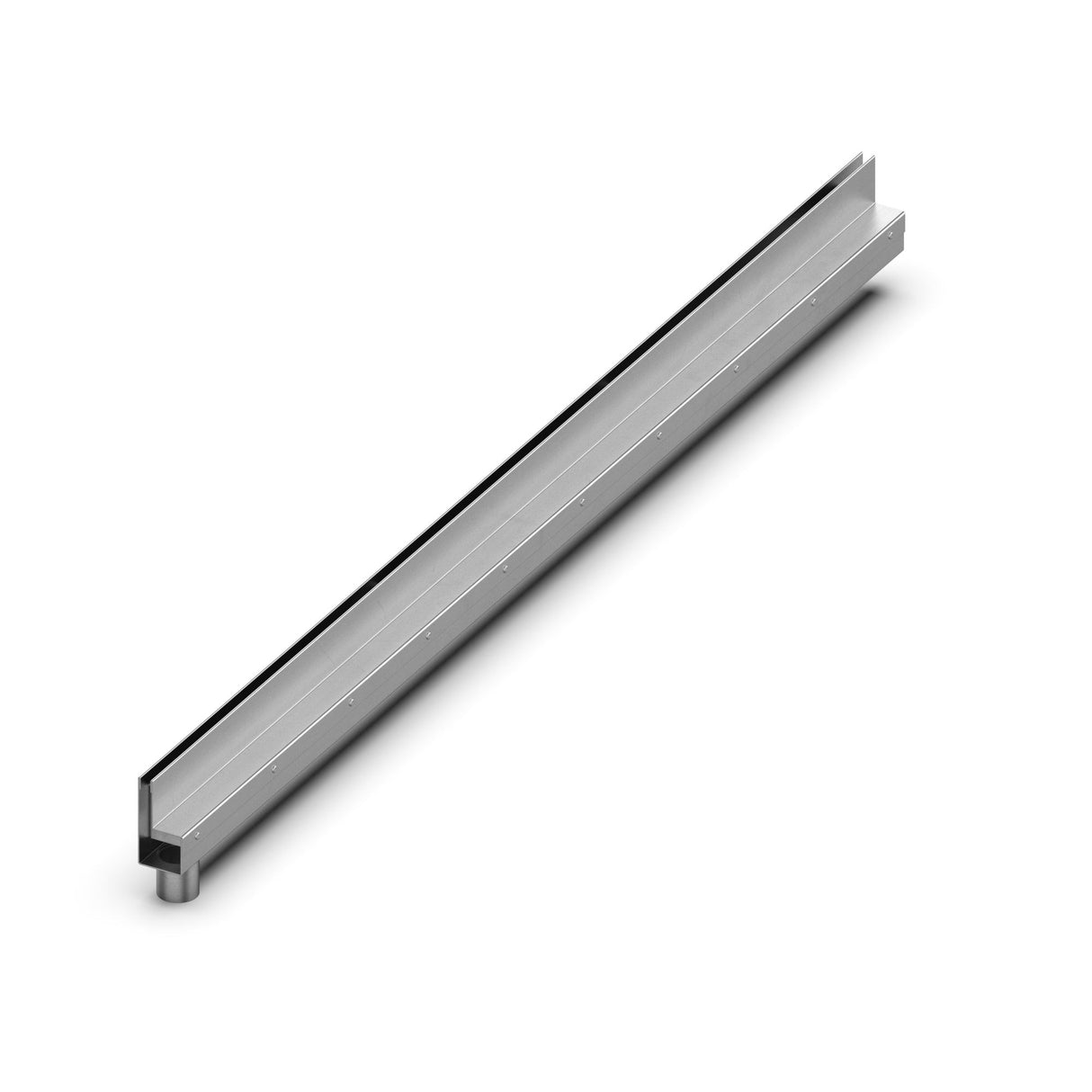

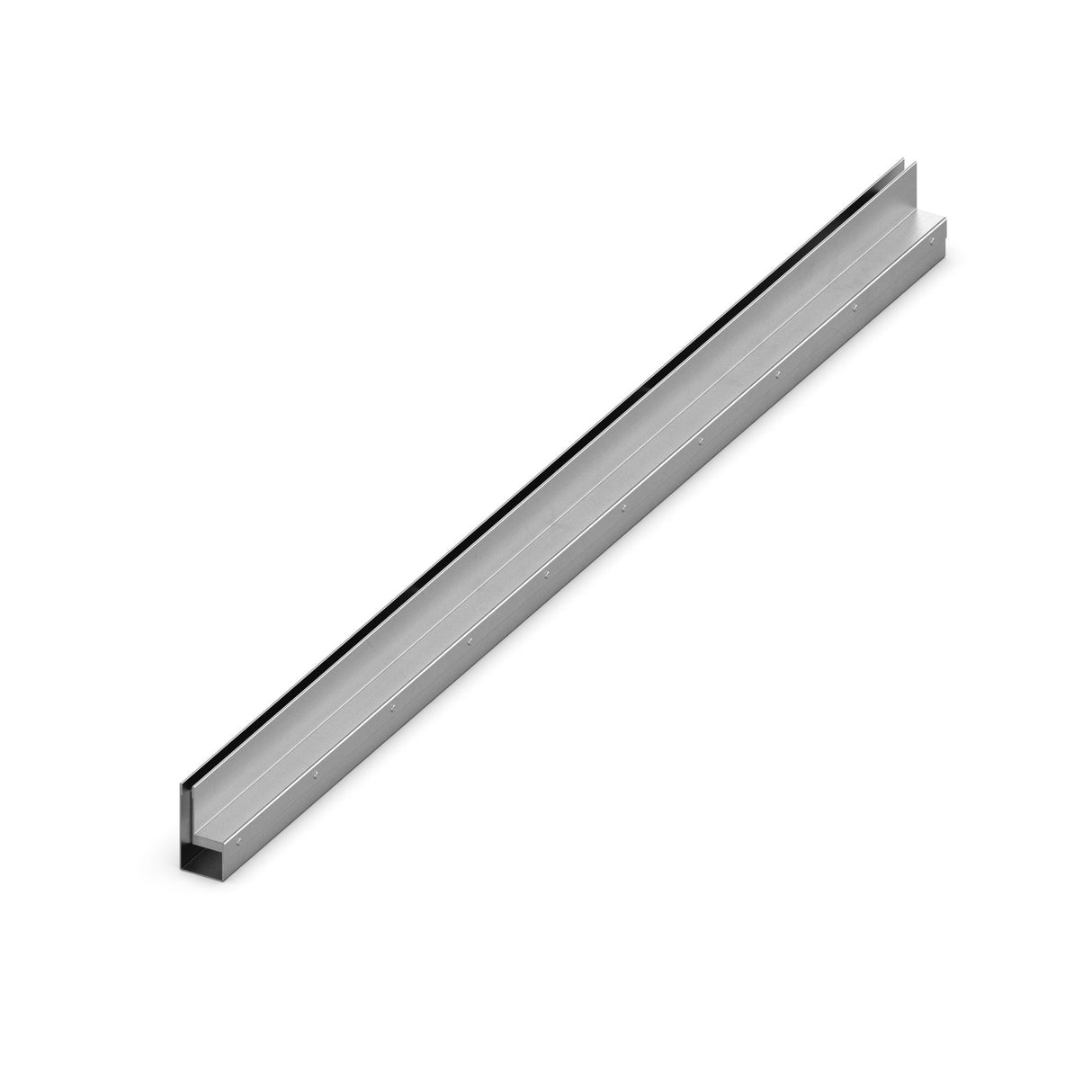

EROslim - stainless steel

Regular price €79,90
Tax included Shipping calculated at checkout.

Short description

  • Length: 1000 mm
  • Stainless steel channel with 30 mm drain on the left
  • Safe to walk on thanks to high-quality stainless steel

variant

Payment & Security

Your payment information is processed securely. We do not store or have access to your card payment information.

Product description

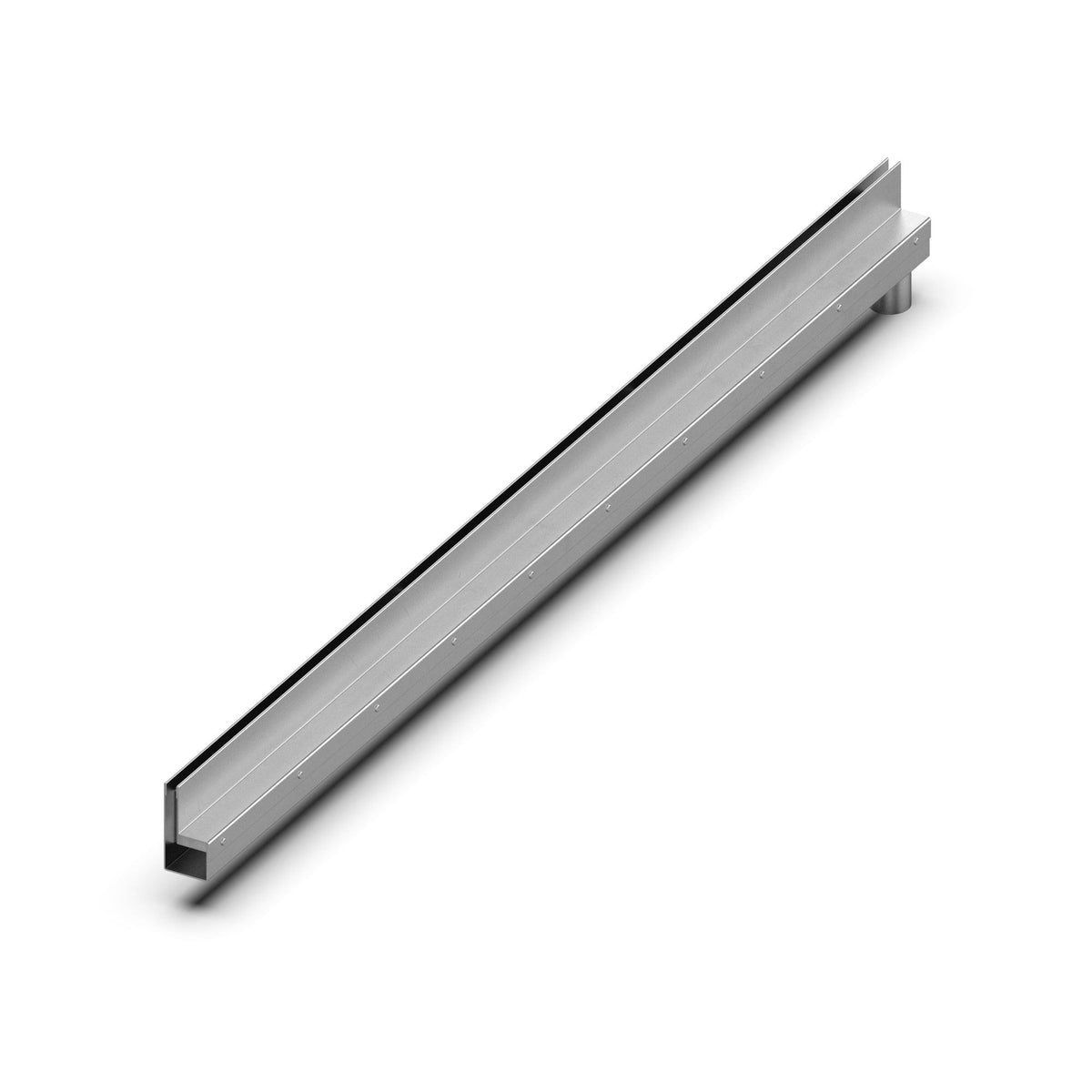

The EROslot slot drain offers an elegant and minimalist drainage solution, ideal for outdoor areas such as terraces, walkways, driveways, and other paved surfaces. With its narrow slot design, the drain integrates almost invisibly into any environment, ensuring discreet yet effective water drainage.
Made of high-quality stainless steel, the EROslot slot drain stands out for its corrosion resistance, durability, and weather resistance. Its robust construction ensures reliable performance even under severe weather conditions.
Thanks to its modular structure, the slot drain can be easily combined with other elements of the EROslot series and individually customized. The slim design allows for perfect integration into modern architectural projects without compromising functionality.
The EROslot slot drain is the ideal choice for projects requiring an aesthetic and unobtrusive drainage system.
The EROslot drainage channel with a 30 mm outlet on the left is supplied with a length of 1000 mm. Custom dimensions are also available to meet the specific requirements of your project.

1. Dimensions and Measurements

Outer length 1000 mm
Outer width 35 mm
Outer height 70 mm
Inner slot width 8 mm
Outer slot width 12 mm
Special feature With 30 mm outlet (left)

2. Product Details

Application areas Around the house
Areas without traffic load
Terraces and patios
Open seating and walkways
Material Stainless steel 1.4301 (V2A)
Material thickness 1.0 mm
Corrosion resistance Yes
Locking No
EAN 4260754671635

3. Technical Details

Standard Not tested
Load class A 15 / walkable
Relevant DIN standards Not tested

4. Installation Information

Barrier-free usability Yes
Installation manual included Yes
